Note: The following information is provided as a guide only. Please consult with your die manufacturer for their specific requirements.

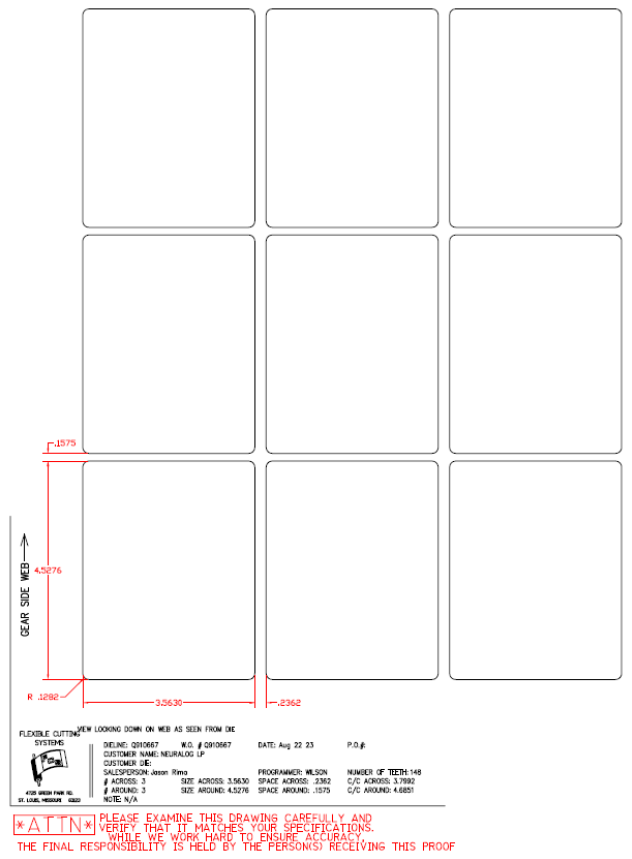

Below is an example of the information that will be required by your die maker when ordering a die. The example is of a 3 high by 3 across 3.5630” x 4.5276” rectangle, 0.1282” corner radius, 0.2362” gap, 3mm distance between cuts and top and bottom edges. Supplying a sample of the material to be used with your order is advisable if you do not have specifics on the label material.
This example shows that the following are required when ordering a
die:
- Label size
- Number across and around
- Gaps between labels across and around
- Corner radius
- Specific details of the media to be cut or a sample to be supplied
- Detailed layout you require
- Base plate size you require
- Web direction
- Magnetic cylinder circumference (15”)
- Type of machine being used (13" AUSTIK DIAMOND) - Magnetic Cylinder specs are in the TotalPress 3000 User Manual
