How to print from Warrior on the Neuralog Callisto?

Instructions for setting up the print parameters to print from Warrior on the Neuralog Callisto.

  1. Access Printer Settings:

    1. Open Devices and Printers in the Windows Control Panel.
    2. Locate and right-click the Callisto printer, then select Printer Preferences.

  2. Configure Printer Parameters:

    1. Set Banner and Black Mark options in the printer driver settings.
    2. Avoid using Printer Overrides, as Warrior does not support these settings directly.
  3. Warrior Setup

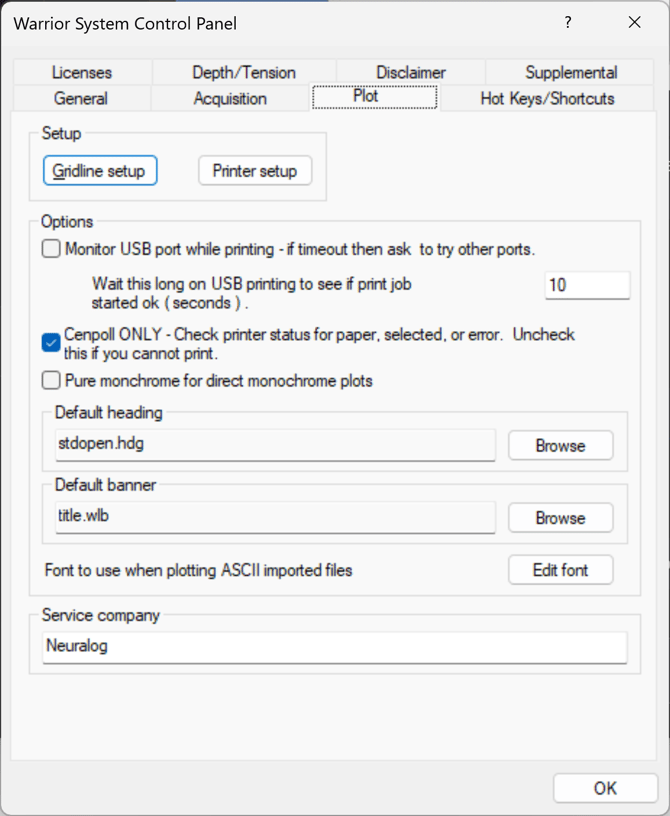

    1. Go to Warrior Control Panel and select the Plot tab. Click the Printer setup button.undefined-3

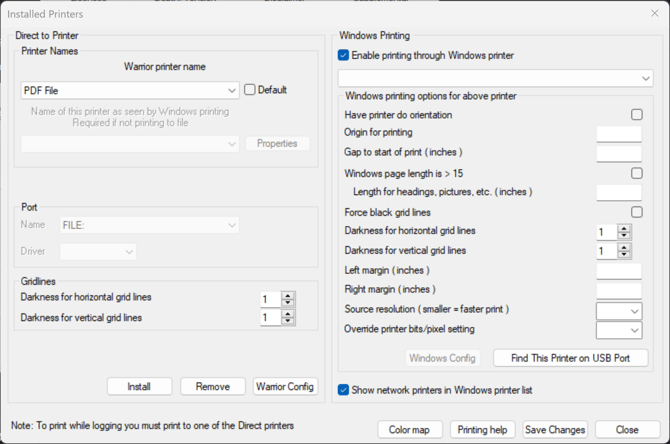

    2. Check “Enable printing through Windows printer.”undefined-1
    3. Close the Warrior Control Panel.
  4. Test and Adjust:

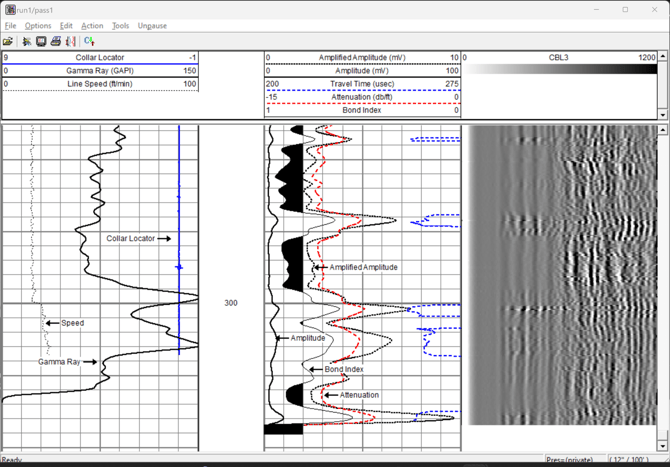

    1. To print the logs, start the Warrior Interactive Plot and load the log by browsing for the log.db database file.  You will see the log load.

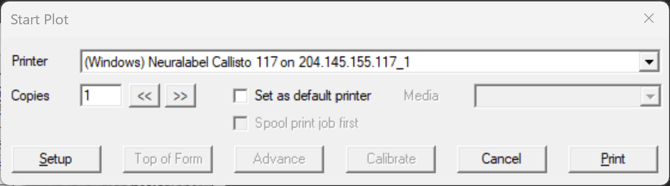

    2. Click the print icon, select the Callisto/NT1000 printer you set up, and click the Print button.undefined-2undefined
    3. Print a test log from Warrior to confirm the settings produce a clean, properly aligned log.
    4. If adjustments are needed, revisit the custom form settings.

Control Print Width: If the log prints too wide (default is 8.5", which may bleed off the paper), adjust the Form Size:

  1. Create a custom form size of 8.25 x 7.893 inches:
    1. 8.25 inches ensures the log width fits within the paper.
    2. 7.893 inches optimizes tail length for a cleaner print.
